How to Install High Chair

In Installation Instructions 0 comment

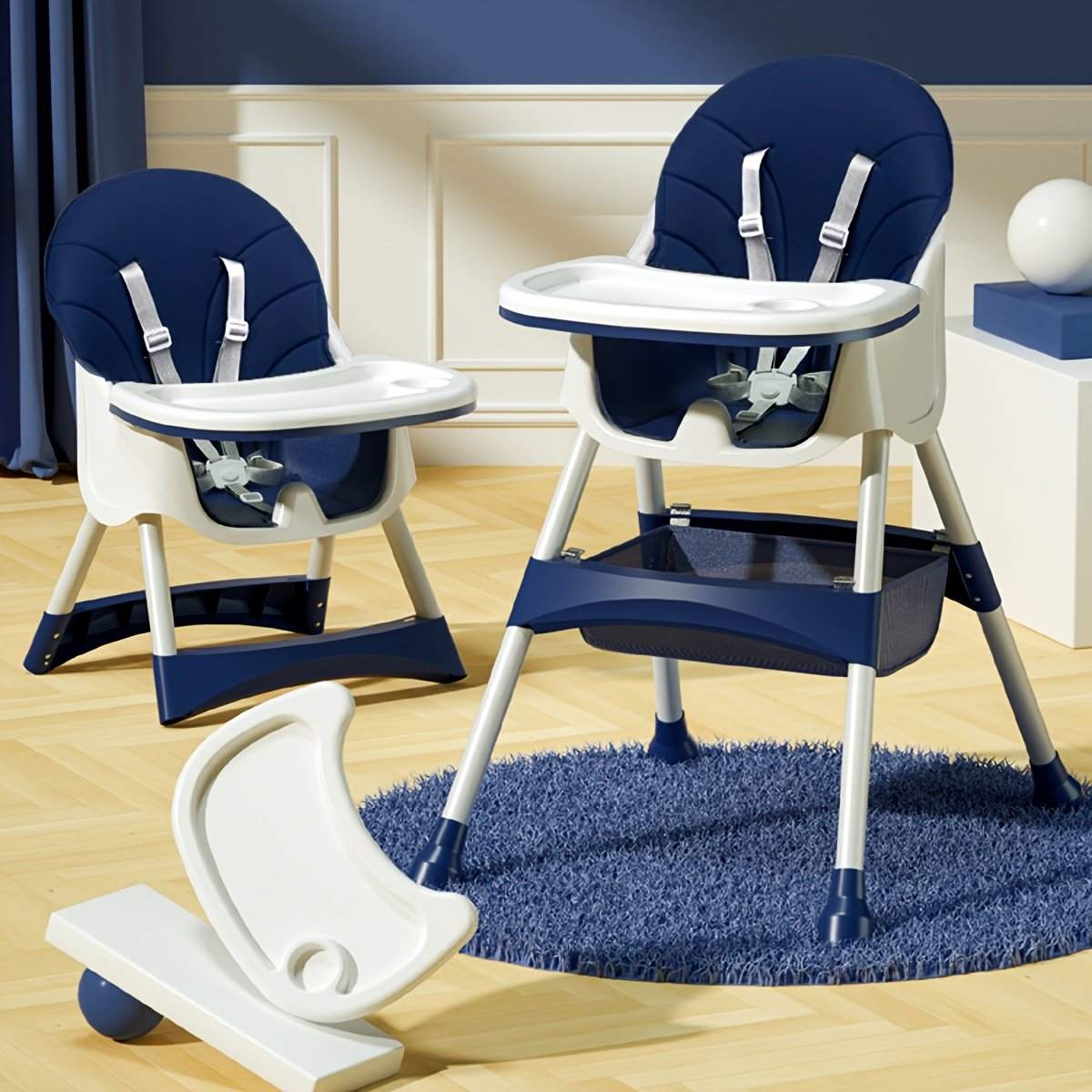

This is a detailed guide to install Toddly Flexigrow Baby high Chair

Contents

  • 1 x Seat
  • 1 x Seat Cover
  • 4 x Upper-End Rods
  • 4 x Lower-End Rods
  • 1 x Front Leg Assembly (With Footrest)
  • 1 x Back Leg Assembly • 1 x Tray
  • 1 x Tray Insert
  • 4 x Horseshoe Base
  • 4 x Wheels
  • 1 x Storage Pouch
  • 1 x 5 Point Harness

Before installing differentiate out 4 x lower-end rods and 4 x upper-end rods, lower-end rods goes at the end or are the base of the high chair, and upper end are connected first.







Ensure the connecting pins are opposite to each other and pointing in the inward direction

Now This is almost a complete seat installation, now install 4 Horseshoe Base with wheels you got a Toddler Chair Mode

Continuing the installation connect the front & back leg assembly, ensure the foot rest is aligned properly.

Now the Tray and the Tray insert

There are 3 modes in the tray, it can be adjusted according to child's needs & requirement



Now finishing the Chair connecting with 4 lower-end rods, horseshoe base and wheels

Please Keep The Wheels Locked at all times, only unlock it when moving and turn it back on Lock mode to avoid any safety hazards.

The Last Step would be to ensure the 5-Point Harness is connected properly, as this is the last step

IMPORTANT: Use the 5-point Harness at all times to ensure that baby is safe and secure
while seated.
1. Place baby in seat.
2. Check that the shoulder straps are attached to waist belt.
3. Position the crotch strap through baby’s legs and feed arms through shoulder straps.
4. Close buckles. You should hear a *click* sound.
5. Adjust sliders for a snug fit (adjust as baby grows).
6. Check to be sure the harness is securely attached by pulling away from baby; it should remain attached

To adjust the shoulder height:
Open the back of the Seat Cover by separating the hook-n-loop closure.
Feed T-end of the shoulder strap through Seat back and Cushion to remove it. Re-insert the T-end though the desired slot on Cover and feed through corresponding slot on Seat back. Pull to ensure it is secured and repeat on the remaining shoulder strap. Close back of Cover and secure with hook-n-loop closure.

When removing baby from harness, loop the shoulder straps over the hooks on Seat sides. This will make it easy to take baby out and put them back in.



The Toddly Flexigrow High Chair is foldable, simply click both the buttons on the side and it can be folded easily, here is a short demo on our Youtube:

https://youtube.com/shorts/6W8tQXBHgBk?feature=share
